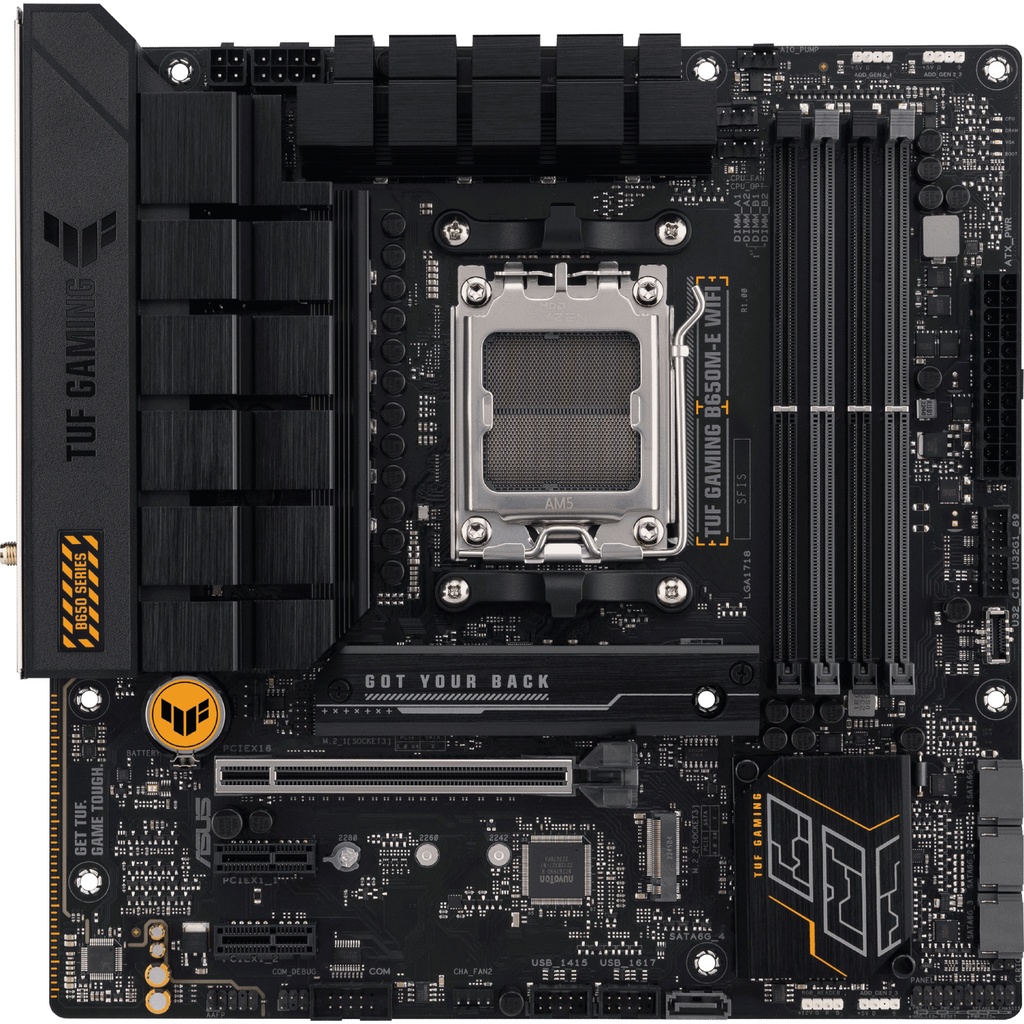

ASUS TUF GAMING B650M-E WIFI mATX Motherboard

https://shop.vrc.co.nz/web/image/product.template/1219/image_1920?unique=5dcdfe6

ASUS TUF GAMING!

379.01 379.01 NZD 379.01 GST Included

329.57 GST Included

Not Available For Sale

  • Warranty
  • Brand - Motherboard
  • Socket
  • PCIe x4 Slots
  • PCIe x1 Slots
  • PCIe x16 Slots
  • Chipset
  • AMD Crossfire
  • NVIDIA SLI
  • Overclocking Support
  • Form Factor
  • Audio Codec
  • Audio Output
  • Max. Memory Capacity
  • Max. Memory Speed
  • Max. Memory DIMMs
  • Memory Type
  • M.2 NVMe PCIe 4.0
  • M.2 NVMe PCIe 3.0
  • Total M.2 NVMe Slots
  • M.2 NVMe PCIe 5.0
  • Sata Ports
  • Bluetooth
  • Wifi
  • USB Type-C Ports
  • Type-A USB 3.2 Gen2
  • Type-A USB 3.2 Gen1
  • Lan
  • Bios Flashback Button
  • Type-A USB 2.0/1.1
  • USB 3.2 Gen 1 Headers
  • USB 2.0 Headers
  • Optical S/PDIF
  • Type-C Header USB 3.2 Gen 1 (10Gbps)

This combination does not exist.

Out of Stock
Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
Warranty: 3-Year Warranty
Brand - Motherboard: ASUS
Socket: AM5
PCIe x4 Slots: 0
PCIe x1 Slots: 2
PCIe x16 Slots: 1
Chipset: AMD B650
AMD Crossfire: No
NVIDIA SLI: No
Overclocking Support: No
Form Factor: M-ATX
Audio Codec: Realtek Audio CODEC
Audio Output: 7.1
Max. Memory Capacity: 192GB
Max. Memory Speed: 7600 MHz
Max. Memory DIMMs: 4
Memory Type: DDR5
M.2 NVMe PCIe 4.0: 1
M.2 NVMe PCIe 3.0: 0
Total M.2 NVMe Slots: 2
M.2 NVMe PCIe 5.0: 1
Sata Ports: 4
Bluetooth: Bluetooth 5.2
Wifi: Wifi 6
USB Type-C Ports: 1x USB-C 3.2 Gen2 (10Gbps)
Type-A USB 3.2 Gen2: 1
Type-A USB 3.2 Gen1: 2 x USB 3.2 Gen 1 ports
Lan: 2.5 Gb/s
Bios Flashback Button: No
Type-A USB 2.0/1.1: 4
USB 3.2 Gen 1 Headers: 2
USB 2.0 Headers: 2
Optical S/PDIF: Yes
Type-C Header USB 3.2 Gen 1 (10Gbps): 1

ROCK-SOLID PERFORMANCE!

With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING B760M-PLUS WIFI is the perfect foundation for your next Intel battle rig.


Six-Layer PCB Design

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.


Digi+ VRM

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.


8+4 Pin ProCool Power Connectors

Compared to most power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

Unleash DDR5 With AEMP II

ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.


PCIe 4.0 Support

The two PCIe 4.0 M.2 slots support up to two 2280 devices and the data-transfer speeds are up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.


Comprehensive Fan Controls

TUF GAMING B760M motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 2+ utility in Armoury Crate or via the award-winning ASUS UEFI BIOS.


Connectivity

The TUF-GAMING B760M-PLUS WIFI reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes two Type-C connections, and Thunderbolt 4 expands compatibility and bandwidth even further.



EASY PC DIY

The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.

SafeSlot Core+ & SafeDIMM

SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot―all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.

ESD Guards

ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.

TUF LANGuard

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

2.5 Gb Ethernet

2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.

Wi-Fi 6

The Intel WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps*. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

Two-Way AI Noise Cancelation

This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are muffled so you can hear and be heard with excellent clarity while gaming or during calls.

Realtek 7.1 Surround Sound

The unique audio codec designed in close collaboration with Realtek for TUF GAMING B760M motherboards feature an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.
