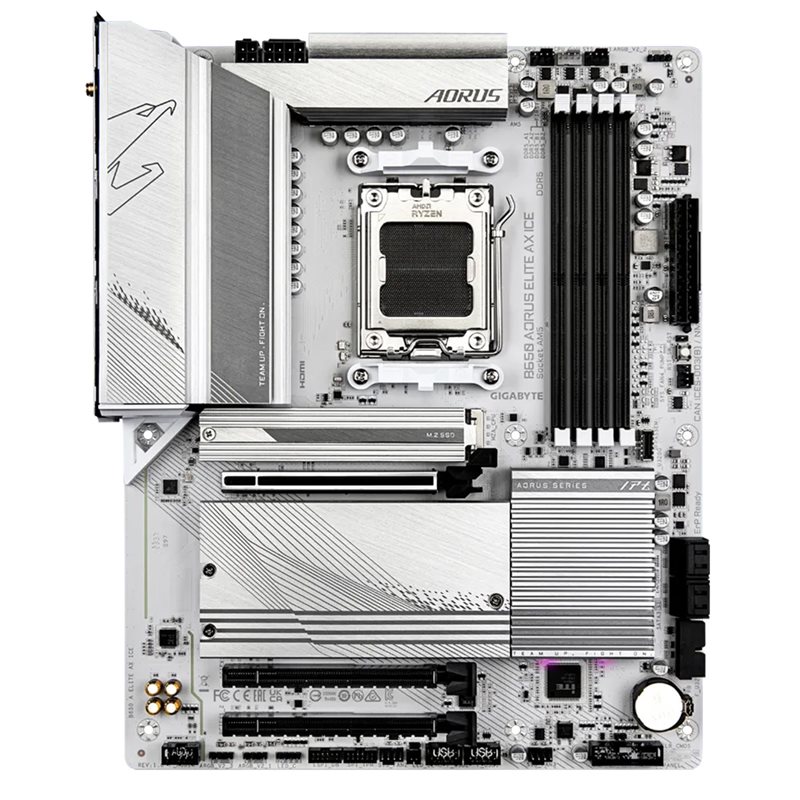

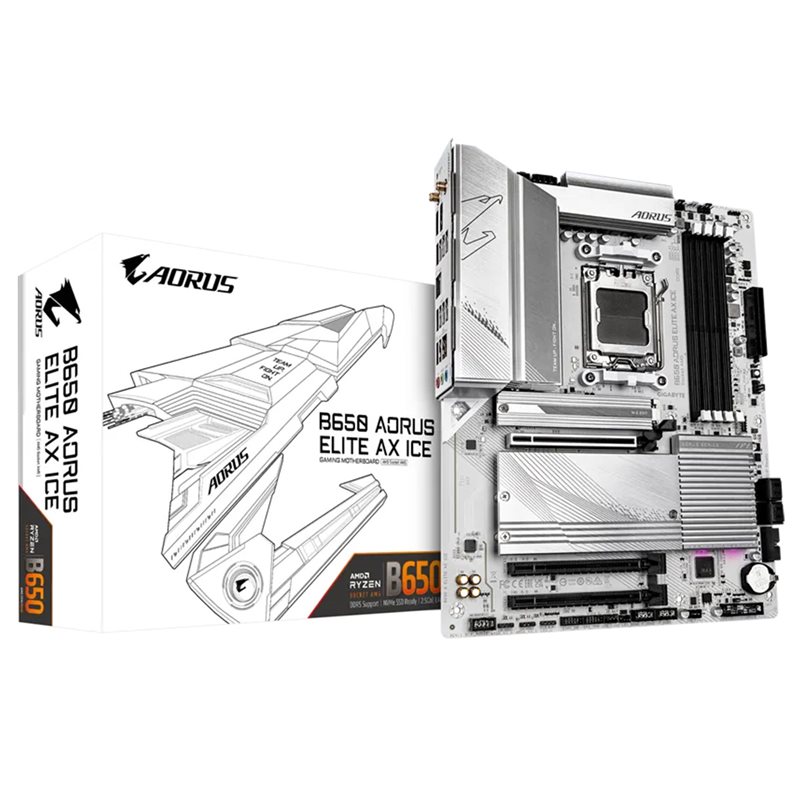

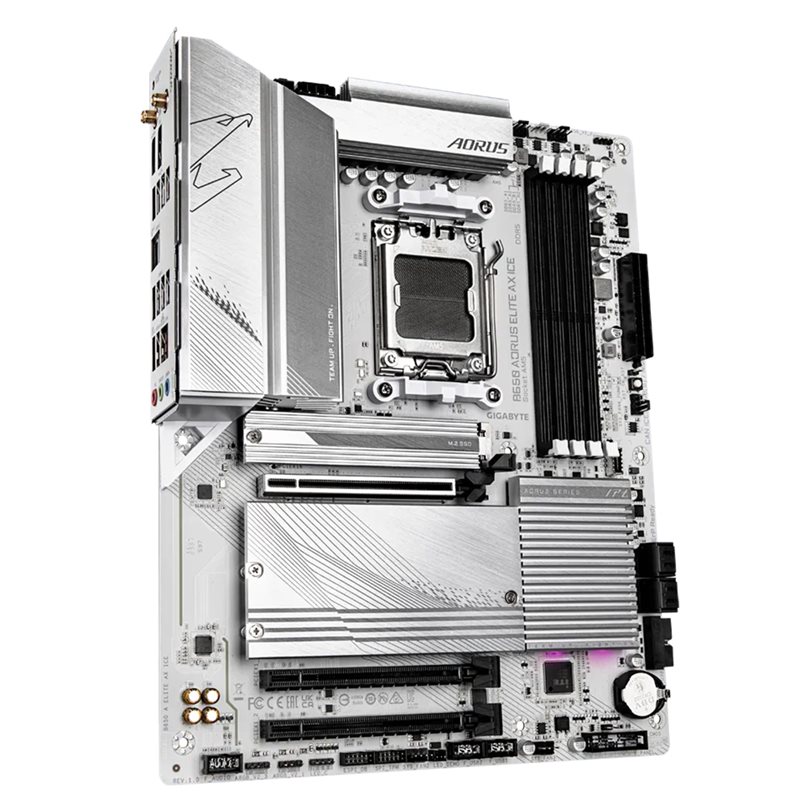

Gigabyte B650 AORUS ELITE AX ICE Gaming Motherboard AM5
B650 Wifi 6E, Bluetooth 5.3
| Warranty: 3-Year Warranty |
| Brand - Motherboard: Gigabyte |
| Socket: AM5 |
| PCIe x4 Slots: 0 |
| PCIe x1 Slots: 2 |
| PCIe x16 Slots: 1 |
| Chipset: AMD B650 |
| Overclocking Support: Yes |
| Form Factor: ATX |
| Audio Codec: Realtek Audio CODEC |
| Max. Memory Capacity: 192GB |
| Max. Memory Speed: 8000MHz |
| Max. Memory DIMMs: 4 |
| Memory Type: DDR5 |
| M.2 NVMe PCIe 4.0: 2 |
| M.2 NVMe PCIe 3.0: 0 |
| Total M.2 NVMe Slots: 3 |
| M.2 NVMe PCIe 5.0: 1 |
| Sata Ports: 4 |
| Bluetooth: Bluetooth 5.3 |
| Wifi: Wifi 6E |
| USB Type-C Ports: 2 |
| USB Type-A Ports: 17 |
| Lan: 2.5 Gb/s |
| Bios Flashback Button: No |
| USB 3.2 Gen 1 Headers: 1 |
| USB 3.2 Gen 2 Headers: 1 |
| USB 2.0 Headers: 2 |
| Optical S/PDIF: No |
B650 AORUS ELITE AX ICE
- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Superfast Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E

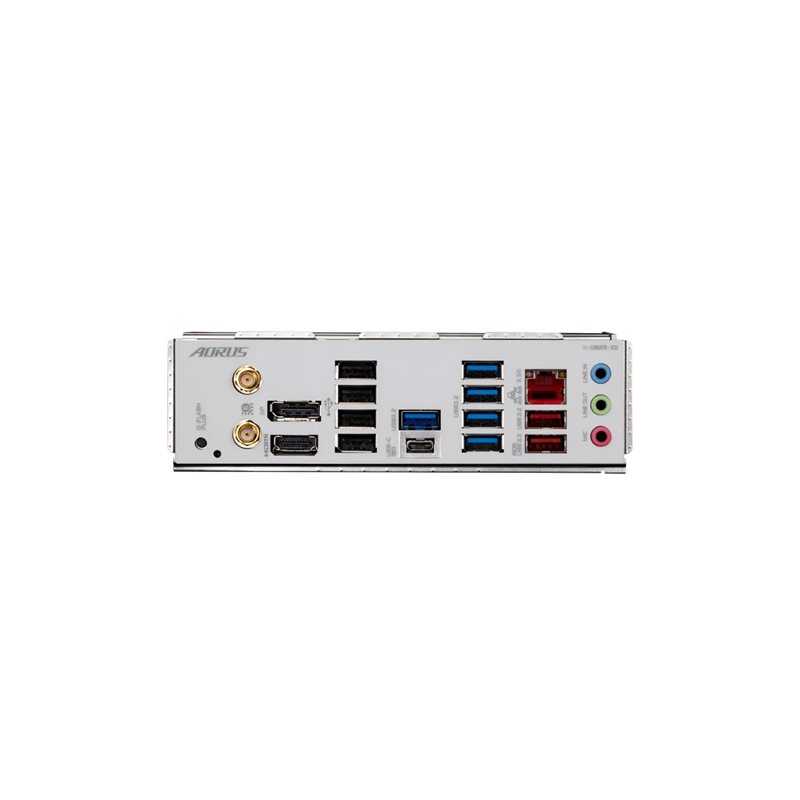

- Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Robust VRM Design
All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.
Memory, to the future
All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compatibility.
- DDR5 Auto Boosterone click to boost native DDR5-4800 to 5000
- AMD EXPO™/ Intel® XMP 3.0 User Profileoptimizes memory settings and achieve the best performance for the system
- High Bandwidthone click to increase DDR5 bandwidth
- Low Latencyone click to shorten DDR5 latency
- Hardware CraftsmanshipMaximize DDR5 performance with our advanced technology for an unparalleled gaming experience.
- Shielded Memory RoutingMemory routing is shielded within the PCB's inner layer to protect against interference.
- Daisy-Chained RoutingOptimized routing eliminates the stub effect, enabling higher memory frequencies and providing professional gamers with a faster and denser system memory experience.
Efficient Thermal
Every AORUS motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.
- 3X Large SurfaceThe surface area has been increased up to 3X larger compared to traditional heatsinks, resulting in improved heat dissipation from the MOSFETs.
- Real One-piece BuildThe TRUE single-piece heatsink offers superior cooling performance compared to competitors' multi-piece designs, thanks to its one-piece construction and larger surface area.
- Multi-Cut DesignWith its Multi-Cut Design, this heatsink includes multiple channels and inlets to enhance airflow, resulting in improved heat transfer performance.
- 6mm Heatpipe6mm heatpipe helps to transfer heat between two heatsinks which improves overall thermal balance of the MOSFETs.
- 7W/mK Thermal PadOptimize hardware performance with our advanced 7W/mK Thermal Pad for efficient heat dissipation.
- 2X Copper EnhancementEnhances system performance with improved heat dissipation, power handling, and seamless overclocking support.
Smart Fan 6
ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.
Build effortless
Building your own PC is meant to be joyful and effortless. AORUS serious motherboard the most DIY-friendly ever.
Ultra Durable
GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. AORUS series motherboard is built to last longer and stand stronger.
- PCIe UD SlotGIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.
- M.2 UD Slot PG5The one-piece, stainless-steel shielding design reinforces the M.2 Slots, and maximizes signal integrity.
- UD Power ConnectorThe unique design provides better conductivity for power and better dissipation for the heat generated from it.
Connectivity versatile
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
Enhancing VR Experiences with Wi-Fi 6E
Wi-Fi 6E enhances VR with faster speeds, lower latency, increased capacity, and stronger security, enabling seamless wireless streaming of high-quality VR games and improved multi-user experiences.
GIGABYTE Ultra-high Gain Antenna
Experience enhanced signal strength with the GIGABYTE Ultra-high gain Antenna, which incorporates a smart antenna function to optimize Wi-Fi signal transmission.
High Quailty Sound
Enjoy a high-quality sound experience, which supports 7.1 channel playback, features an advanced microphone array, and offers versatile connectivity options for gaming and entertainment.
Elevating Performance Together
AORUS series motherboard signifies our dedication to BIOS optimization. Through our community partnership, we're making next-gen performance more user-friendly.
Multi-key
A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.
