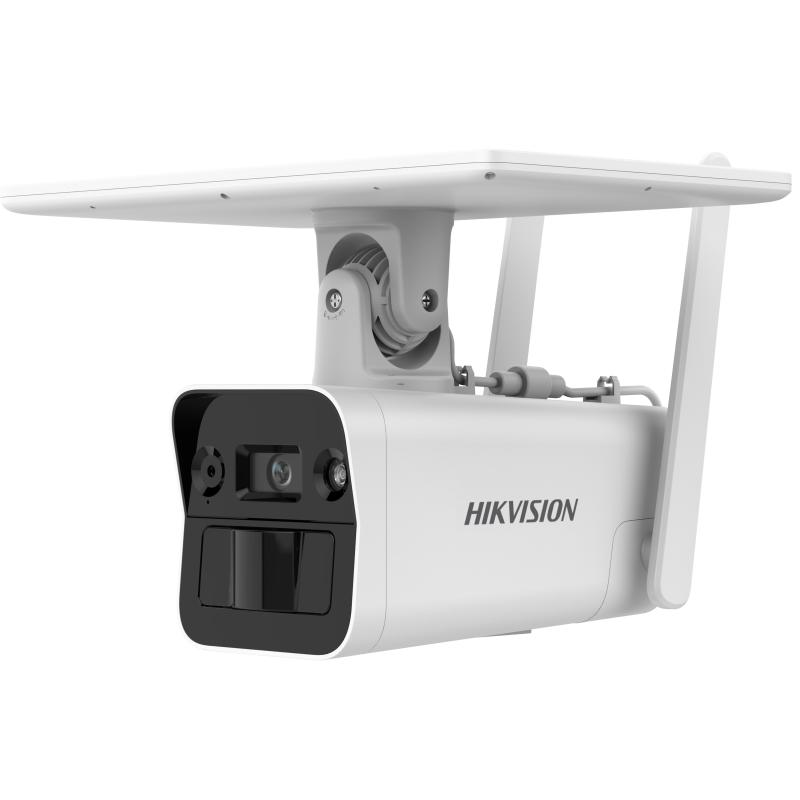

Hikvision Solar Powered Stand Alone 4MP 4G Security Camera

4MP Solar-powered Security Camera Setup

• High quality imaging with 4 MP resolution
• Standalone with solar panel and built-in battery
• Support human and vehicle detection
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication

DATA SHEET PDF

  DS-2XS2T41G1-ID_4G_Datasheet_20240321.pdf (hikvision.com)

Specifications:

• Camera
• Image Sensor1/3" Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationB/W: 0.01 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentSolar panel: tilt: -45° to 45°, rotate:-30° to 30°
• Lens
• Lens TypeFixed focal lens, 4 and 6 mm optional
• Iris TypeFixed
• Aperture4mm: F1.28, 6mm: F1.6
• Depth Of Field4 mm: 2.7 m to ∞6 mm: 5.9 m to ∞
• Focal Length & FOV4 mm, Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°6 mm, Horizontal FOV: 49°, Vertical FOV: 26°, Diagonal FOV: 57°
• Lens MountM12
• DORI
• DORI4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m
• Illuminator
• Supplement Light TypeIR
• Supplement Light RangePerformance mode: up to 30 m, proactive mode: up to 10 m
• IR Wavelength850 nm
• Smart Supplement LightYes
• Video
• Main Stream50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
• Video CompressionMain stream: H.265/ H.264,Sub-stream: H.265/H.264/MJPEG,H.264+ and H.265+: main stream supports under performance mode
• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Region Of Interest (ROI)1 fixed region for main stream
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Audio
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Network
• SecurityPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live ViewUp to 6 channels
• APIISAPI,SDK
• ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
• User/HostUp to 32 users3 user levels: administrator, operator, and user
• Network StorageAuto Network Replenishment (ANR)
• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web BrowserPlug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+,Local service: Chrome 57.0+, Firefox 52.0+
• Mobile Communication
• SIM Card TypeMicro SIM
• Uplink And Downlink Data RateCat 4, uplink: 50 Mbps, downlink: 150 Mbps
• FrequencyEU:LTE-TDD: B38/B40/B41LTE-FDD: B1/B3/B5/B7/B8/B20/B28WCDMA: B1/B5/B8GSM: B3/B5/B8LA:LTE-TDD: B38/B40LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66WCDMA:B1/B2/B3/B4/B5/B8GSM: B2/B3/B5/B8
• StandardLTE-TDD,LTE-FDD,WCDMA,GSM
• Image
• SNR≥ 52 dB
• Wide Dynamic Range (WDR)Digital WDR
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Transducer
• Transducer TypePIR + Radar
• Detection Angle4 mm : Horizontal: 80°, vertical: 42°,6 mm：Horizontal: 50°, vertical: 22°
• Detection RangeUp to 12 m
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in eMMC storage, up to 8 GB,Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 5 GB is available for recording.
• Built-In MicrophoneYes
• Built-In SpeakerYes
• Reset KeyYes
• Event
• Basic EventMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
• LinkageUpload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning
• General
• PowerPower Consumption and Current:Typical power scenarios: 1.85 W (4G working)Standby scenarios: 80 mWMax. power consumption: 7 WPower Supply:12 VDC*For debugging only6.5 W (deviation: ± 1 W) Solar panelsPower Interface:Power supply interface: Ø5.5 mm coaxial power plug

  Extened solar panel: Ø5.5 mm coaxial power plug

• MaterialPlastic
• Storage Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionHeartbeat,mirror,flash log
• Startup And Operating Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
• Dimension213.7 mm × 292.4 mm × 188.7 mm (8.4" × 11.5" × 7.3")
• Package Dimension345 mm × 240 mm × 292 mm (13.6" × 9.4" × 11.5")
• WeightApprox. 1.42 kg (3.1 lb.)
• With Package WeightApprox. 2.07 kg (4.6 lb.)
• Battery
• Battery TypeTernary Lithium
• Capacity51.46 Wh
• Max. Charging Voltage12.6 V
• Operating TemperatureCharging: 0 °C to 45 °C (32 °F to 113 °F)Discharging: -20 °C to 50 °C (-4 °F to 122 °F)
• Battery Voltage8.1 V to 12.6 V
• Battery LifeMore than 800 cycles
• Cycle LifetimeProactive mode: 1.5 days,Standby mode: 11 days
• Battery WeightApprox. 185 g (0.4 lb.)
• Approval
• EMCCE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,*CE and RCM certifications are only for the device sold in the European region.
• RFCE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)*CE certification is only for the device sold in the European region.
• SafetyCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,LOA: IEC/EN 60950-1,*CE and LOA certifications are only for the device sold in the European region.
• EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006,*CE certification is only for the device sold in the European region.
• ProtectionIP67: IEC 60529-2013
