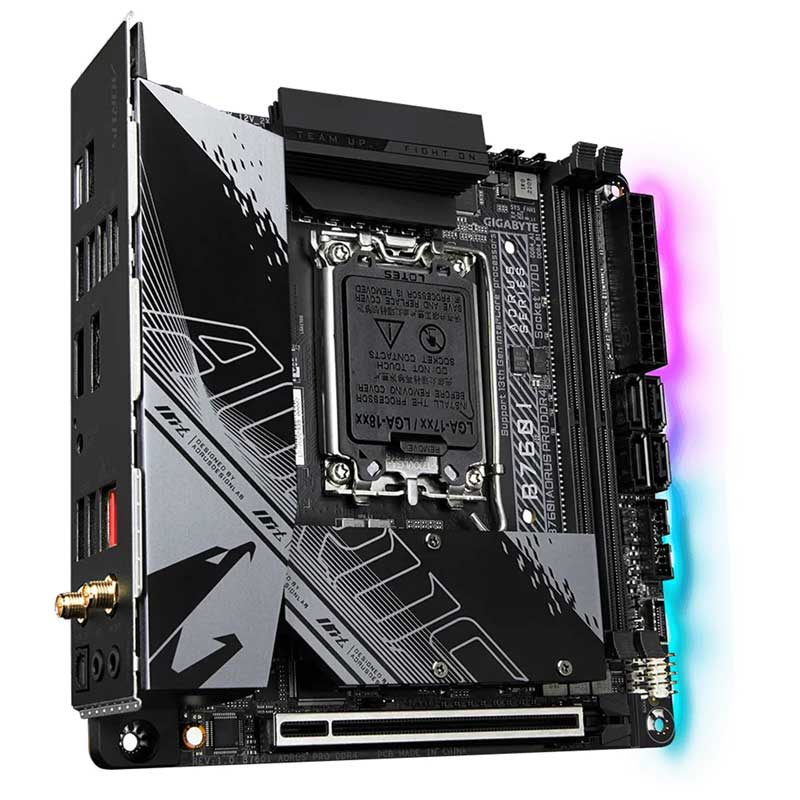

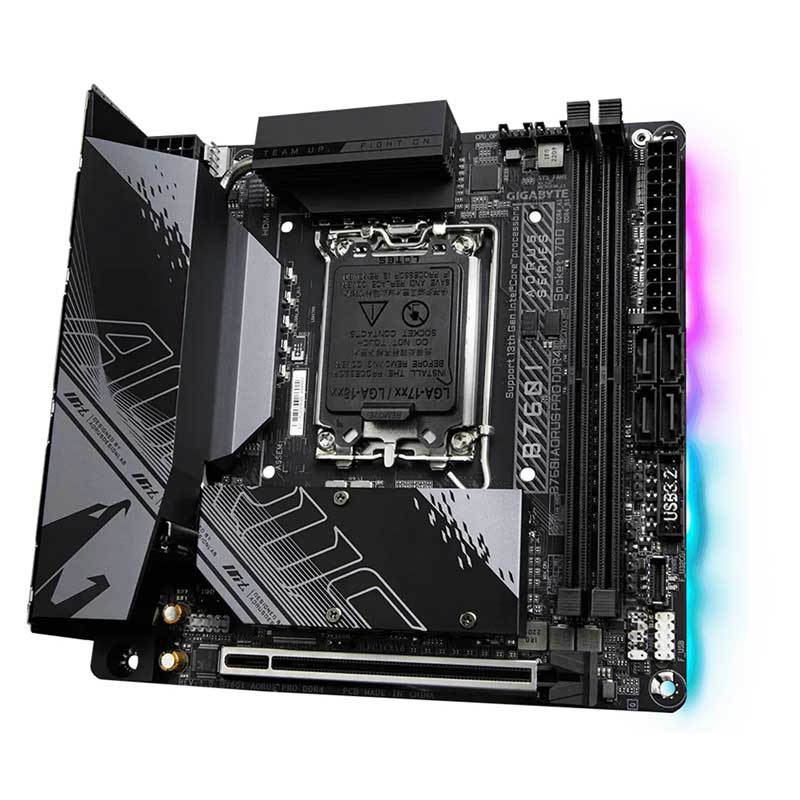

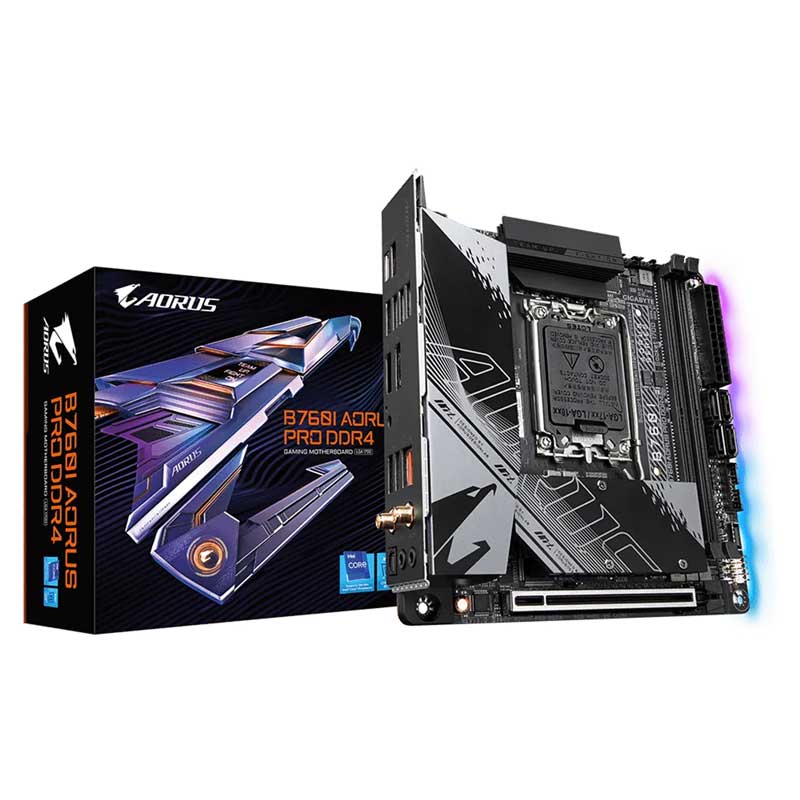

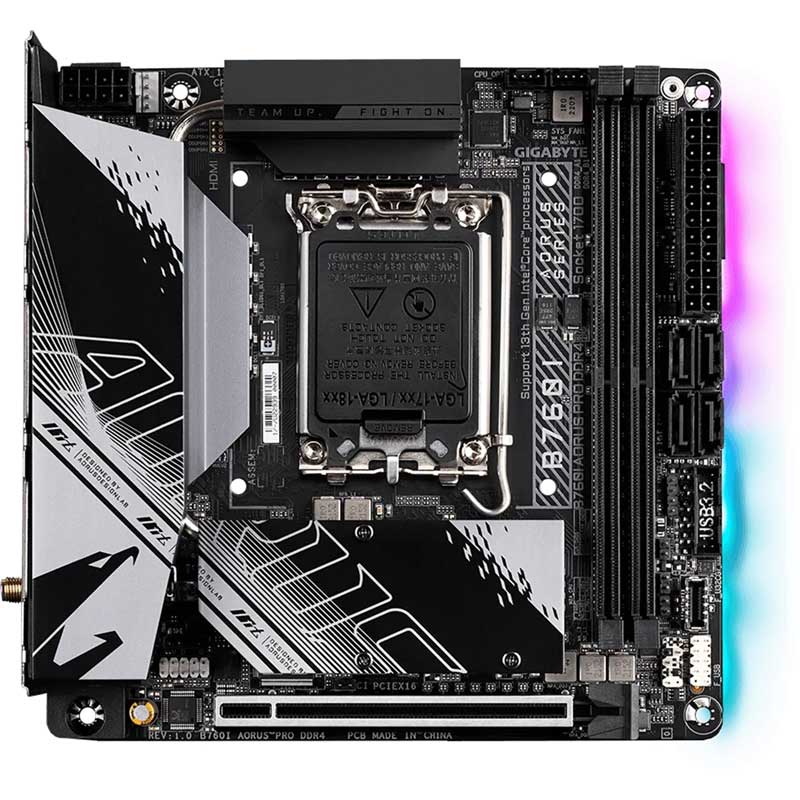

Gigabyte B760I AORUS PRO DDR4 ITX Gaming Motherboard
Tiny ITX Board for 12th, 13th & 14th Gen Intel CPUS!
| Warranty: 3-Year Warranty |
| Brand - Motherboard: Gigabyte |
| Socket: LGA1700 |
| PCIe x4 Slots: 0 |
| PCIe x1 Slots: 0 |
| PCIe x16 Slots: 1 |
| Chipset: Intel B760 |
| AMD Crossfire: Yes |
| NVIDIA SLI: No |
| Overclocking Support: No |
| Form Factor: ITX |
| Audio Codec: Realtek Audio CODEC |
| Audio Output: 7.1 |
| Max. Memory Capacity: 64GB |
| Max. Memory Speed: 3200 MHz, 5333MHz (OC) |
| Max. Memory DIMMs: 2 |
| Memory Type: DDR4 |
| M.2 NVMe PCIe 4.0: 1 |
| M.2 NVMe PCIe 3.0: 0 |
| Total M.2 NVMe Slots: 1 |
| M.2 NVMe PCIe 5.0: 0 |
| Sata Ports: 4 |
| Bluetooth: Bluetooth 5.2 |
| Wifi: Wifi 6 |
| USB Type-C Ports: 1 |
| Type-A USB 3.2 Gen2: 1 |
| Type-A USB 3.2 Gen1: 4 |
| USB Type-A Ports: 7 |
| Lan: 2.5 Gb/s |
| Bios Flashback Button: Yes |
| Type-C USB 3.2 Gen 2x2 (20Gbps): 1 |
| Type-A USB 2.0/1.1: 2 |
| USB 3.2 Gen 1 Headers: 1 |
| USB 3.2 Gen 2 Headers: 1 |
| USB 2.0 Headers: 1 |
| Optical S/PDIF: Yes |
| Type-C Header USB 3.2 Gen 1 (10Gbps): 1 |
B760I AORUS PRO DDR4
- Intel® Socket LGA 1700: Support 13th and 12th Gen Series Processors
- Unparalleled Performance: Direct 8+1+1 Phases Digital VRM Solution
- Dual Channel DDR4: 2*DIMMs with XMP Memory Module Support
- Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design: Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
- Fast Networks: Intel® 2.5GbE LAN & Wi-Fi 6 802.11ax

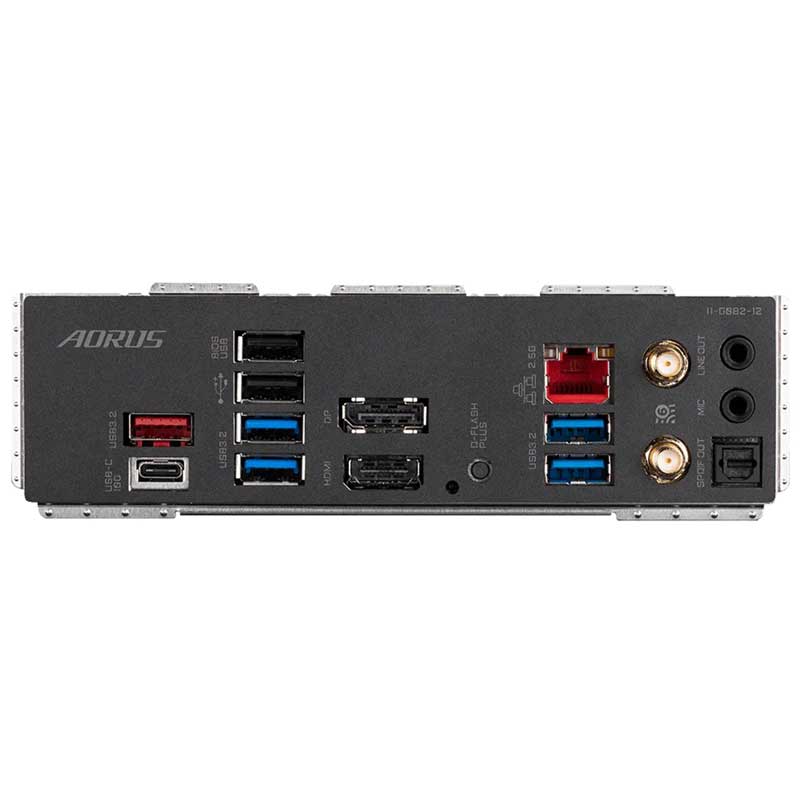

- Extended Connectivity: Front USB3.2 Gen 1 USB-C®, Rear USB-C® 10Gb/s, DP, HDMI
- RGB FUSION: Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
Direct Digital VRM Design
To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components. Learn More about GIGABYTE Direct VRM Design.
Support for DDR4 XMP Up to 5333MHz and Beyond*
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
* XMP Profile support may vary depending on memory module.
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
* Picture is for reference only.
PCIe 4.0 x4 M.2
AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. Upgrade with the latest 2nd generation Gen4 SSD, the performance is up to 7000MB/s which is up to 2x faster than PCIe3.0 SSD.
GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.
Max Turbo
Max Turbo allows Intel® 13th Gen. Core™ CPU to run at Maximum Turbo Boost speed.
Optimization
The Optimization mode enables Intel® 13th Gen. Core™ CPU to balance between high performance and low temperature.
Spec Enhance
The Spec Enhance mode enables Intel® 13th Gen. Core™ CPU to run at high performance under a lower temperature setting.
E-Core™ Disable
The E-Core™ Disable mode
allocates CPU resources to P-core exclusively to boost its gaming
performance, while diminishing the overall power consumption of
processors.
* Features and function vary depending on Motherboard and CPU specifications, image is for reference only.
OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
Thermal Design
3% Cooler by implementing 2X copper PCB Design
By adopting 2X copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it's high thermal conductivity and lower impedance.
SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
High Current Support
Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision Control
Multiple temperature/fan speed control points for precise fan curve
Dual Curve Mode
Slope/Stair dual mode for different user scenario
Fan Stop
Fan can stop completely below users' specified temperature point
PWM/DC Fan Headers
Internal Temperature Sensors
Smart Fan 6 BIOS UI
1 - Improve fan curve UI - We increase control points from 5 to 7 and
larger fan speed graph for precise and easier fan curve control.
2 -
Slope/Stair dual graph mode - Fan curve can be quickly switch with
Slope and Stair modes for different user scenario. Slope is traditional
and intuitive linear fan speed curve. With newly added Stair non-linear
mode, fan keeps at same speed between specified temperature interval.
3 - Manual Input - For advanced users, we provide fan speed manual input for more precise control.
4
- EZ Tuning - Use can place 4 EZ Tuning points at rough temperature/fan
speed, and Smart Fan 6 can quickly generate a fan curve.
5 - Fan curve profile - Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
Note: The picture is for reference and may vary by model.
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
WIFI 6 802.11ax + BT 5 Module
Wireless solution 802.11ax WIFI 6 with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Benefit of WIFI 6
- 5.5X throughput than 802.11ac 1x1*
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience
First adopter on 2.5GbE LAN onboard
2X Faster than ever
- Adoption of 2.5G LAN provide up to 2.5 GbE
network connectivity, with at least 2X faster transfer speeds compared
to general 1GbE networking, perfectly designed for gamers with ultimate
online gaming experience.
- Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet
CONNECTING THE FUTURE - Rear USB3.2 Gen 2 Type-C®
Intel's native USB 3.2 Gen 2 host controller provides USB 3.2 Gen 2 ports with speeds up to 10Gbps .With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen 1 , the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C® and the traditional USB Type-A connector for better compatibility over a wider range of devices.
USB Type-C® Front Panel Connector
Equipped with next generation connectivity AORUS Motherboards already support the chassis of the future. The onboard USB Type-C® header for USB 3.2 Gen 1 makes access convenient when connecting a USB 3.2 Gen 1 drive or charging your new mobile device.
High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
UEFI BIOS
Friendly User Interface
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
Multi-key
A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.
RGB Switch
Turn off all lighting effect on motherboard.
Direct-To-BIOS
Boot into BIOS menu directly without pressing any keyboard button.
Safe Mode
Boot into BIOS safe mode to change specific option without losing other BIOS settings.
* Photo for reference only.
ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!
