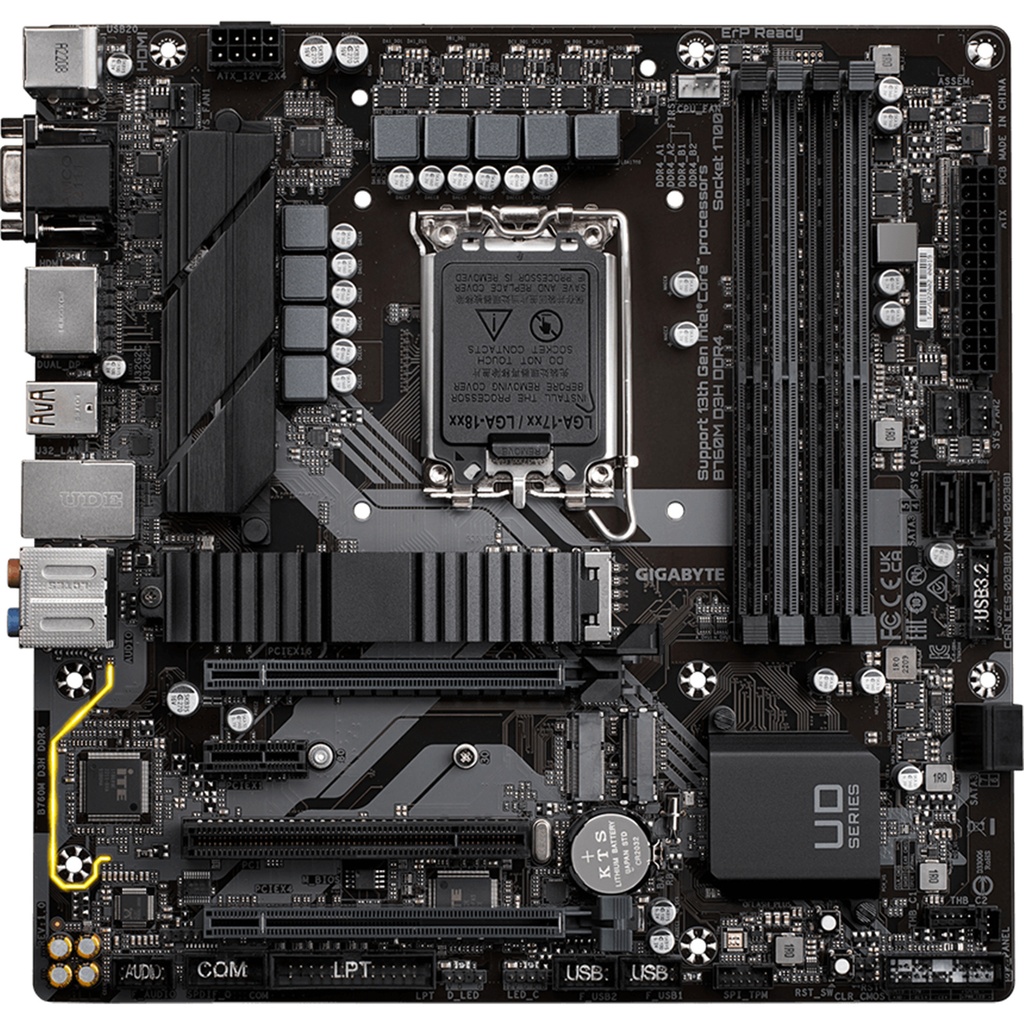

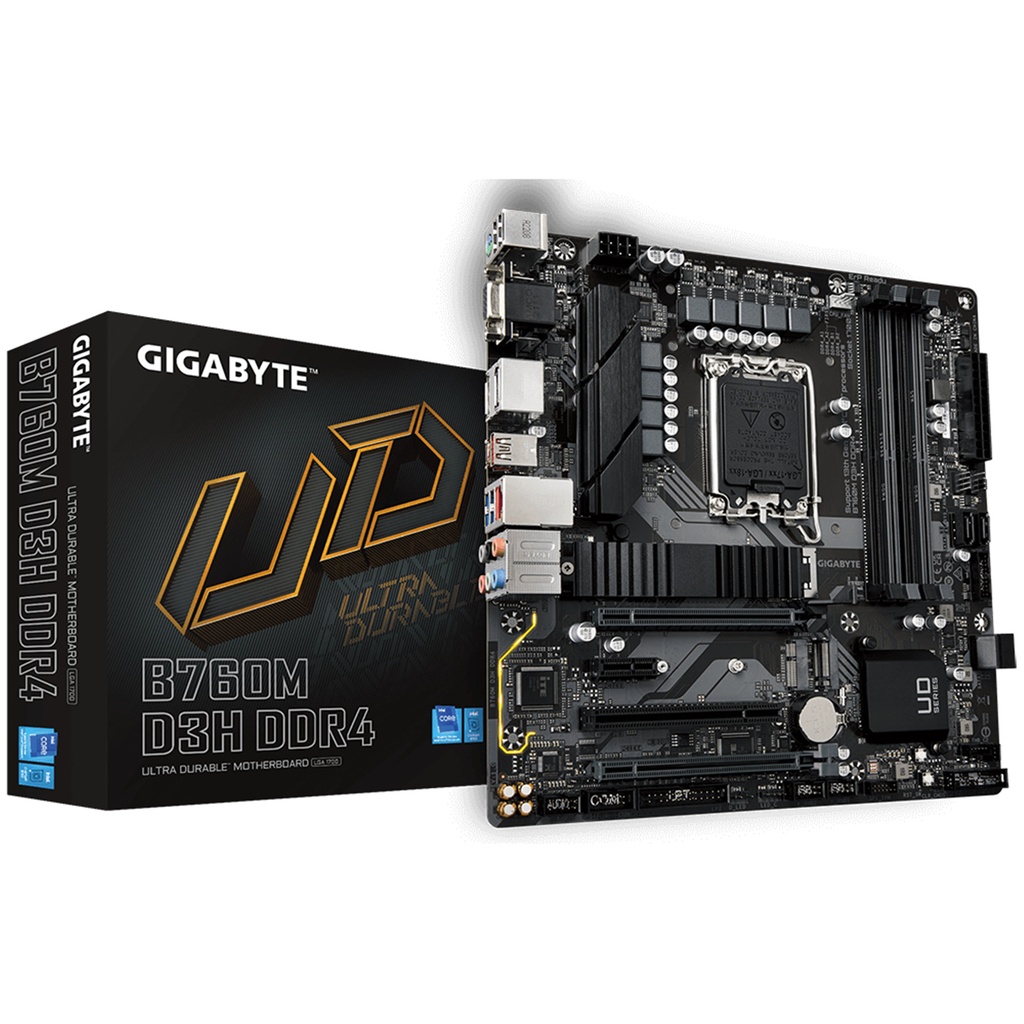

Gigabyte B760M D3H DDR4 mATX Motherboard
| Warranty: 3-Year Warranty |
| Brand - Motherboard: Gigabyte |
| Socket: LGA1700 |
| PCIe x4 Slots: 1 |
| PCIe x1 Slots: 1 |
| PCIe x16 Slots: 2 |
| Chipset: Intel B760 |
| Form Factor: M-ATX |
| Audio Codec: Realtek Audio CODEC |
| Audio Output: 7.1 |
| Max. Memory Capacity: 128GB |
| Max. Memory Speed: 5333 MHz |
| Max. Memory DIMMs: 4 |
| Memory Type (: DDR4 |
| M.2 NVMe PCIe 4.0: 2 |
| M.2 NVMe PCIe 3.0: 0 |
| Total M.2 NVMe Slots: 2 |
| M.2 NVMe PCIe 5.0: 0 |
| Sata Ports: 4 |
| Bluetooth: No |
| Wifi: No |

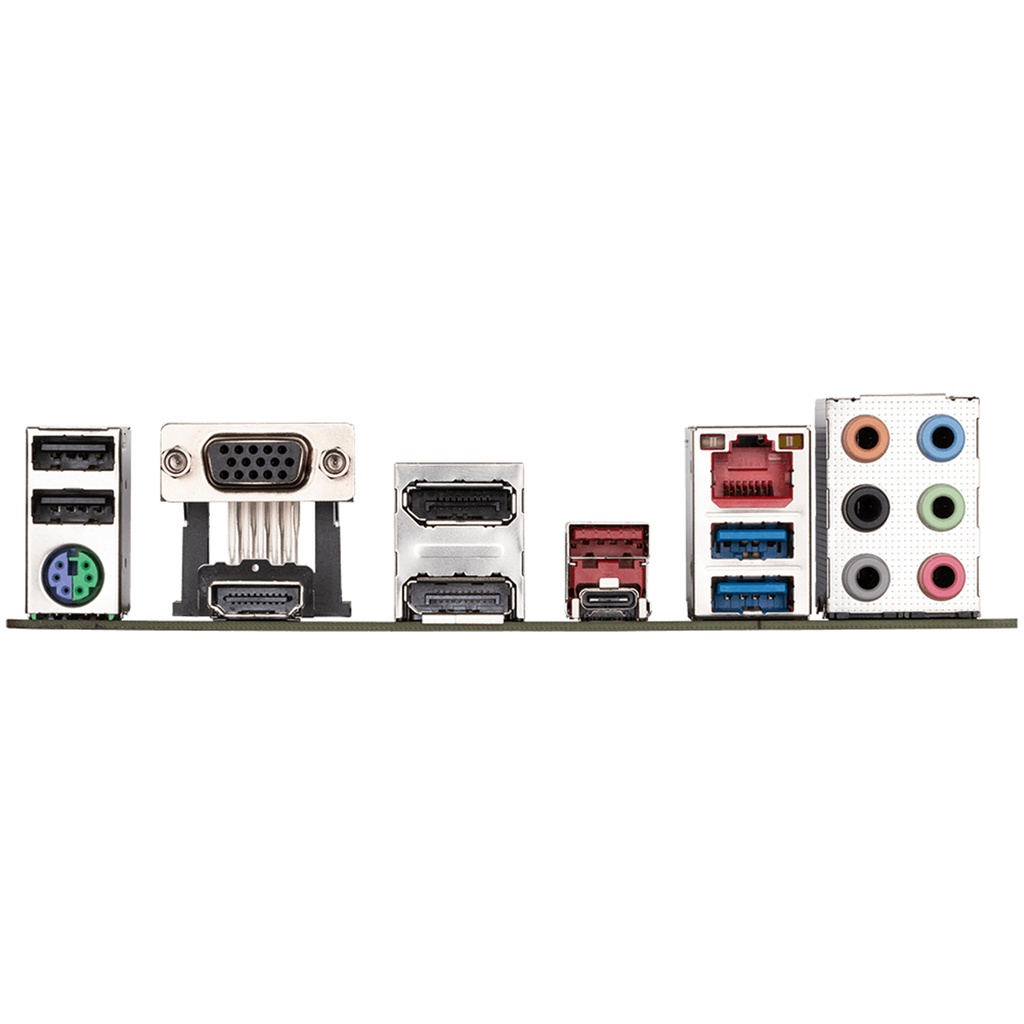

| USB Type-C Ports: 1x USB-C 3.2 Gen2 (10Gbps) |
| Type-A USB 3.2 Gen2: 1 x USB 3.2 Gen 2 Type-A port (red) |
| Type-A USB 3.2 Gen1: 2 x USB 3.2 Gen 1 ports |
| USB Type-A Ports: 2 x USB 2.0/1.1 ports |
| Lan: Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Type-C USB 3.2 Gen 2x2 (20Gbps): 0 |
| USB 3.2 Gen 1 Headers: 1 |
| USB 3.2 Gen 2 Headers: 0 |
| USB 2.0 Headers: 2 |
| Optical S/PDIF: Yes |
