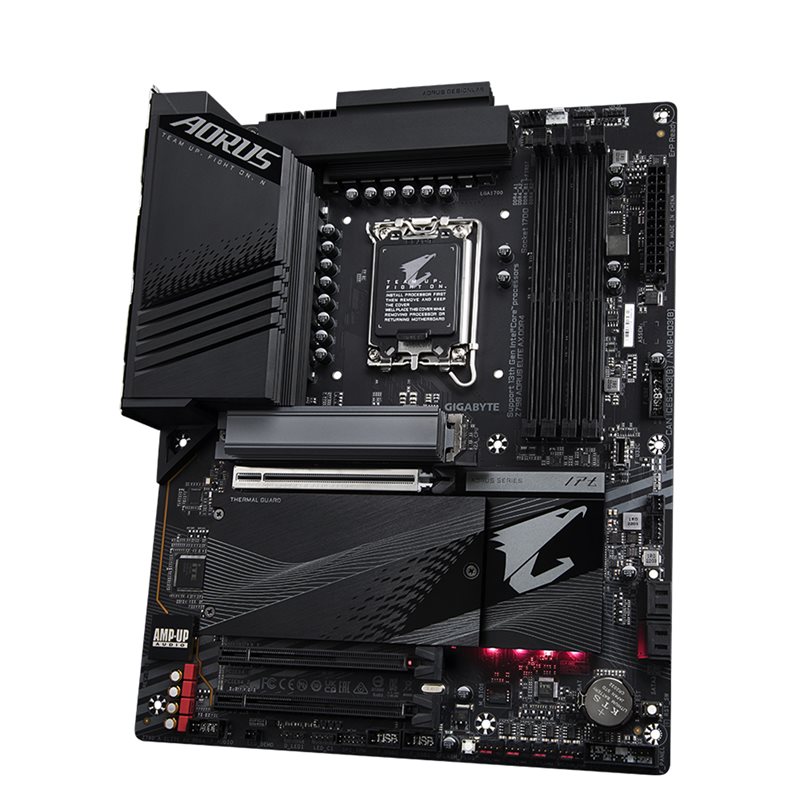

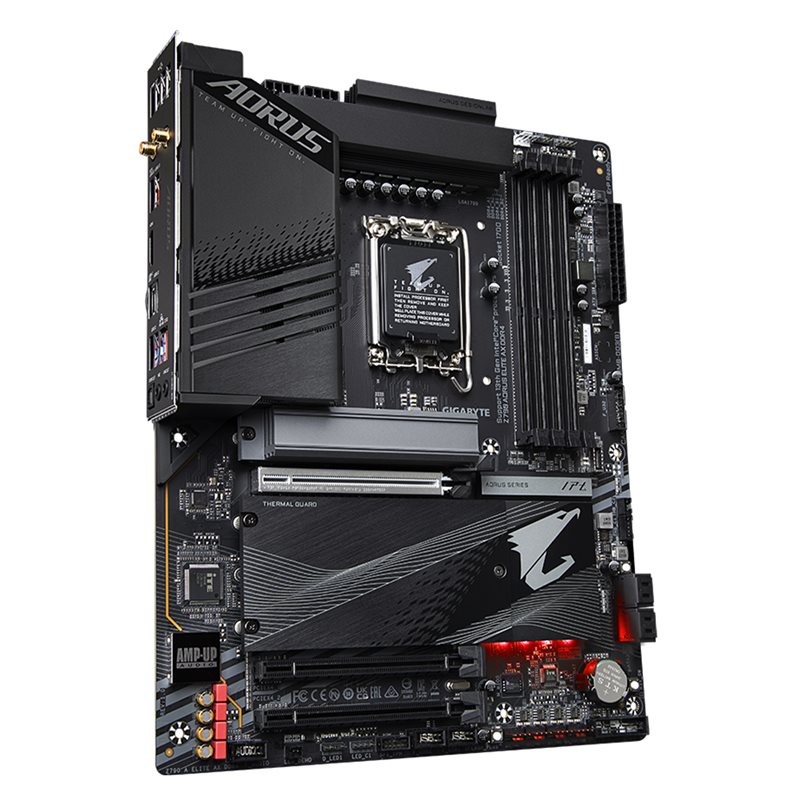

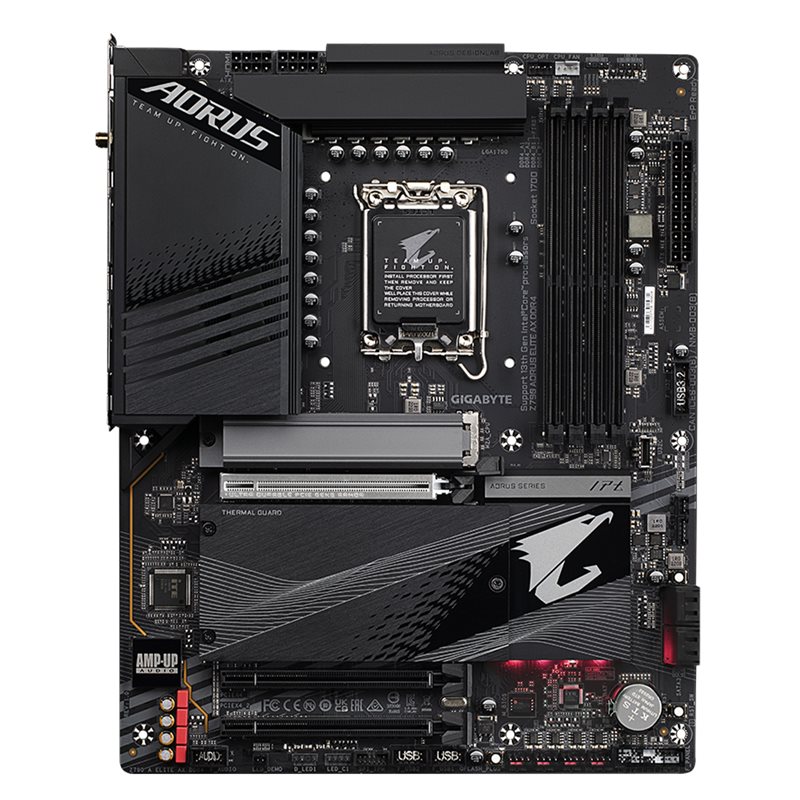

Gigabyte Z790 AORUS ELITE AX DDR5 Gaming Motherboard
Z790 Chipset! Wifi 6E, Bluetooth 5.3
Warranty: 3-Year Warranty |
Brand - Motherboard: Gigabyte |
Socket: LGA1700 |
PCIe x4 Slots: 0 |
PCIe x1 Slots: 0 |
PCIe x16 Slots: 3 |
Chipset: Intel Z790 |
AMD Crossfire: Yes |
NVIDIA SLI: No |
Overclocking Support: Yes |
Form Factor: ATX |
Audio Codec: Realtek Audio CODEC |
Audio Output: 7.1 |
Max. Memory Capacity: 128GB |
Max. Memory Speed: 7600 MHz |
Max. Memory DIMMs: 4 |
Memory Type: DDR5 |
M.2 NVMe PCIe 4.0: 4 |
M.2 NVMe PCIe 3.0: 0 |
Total M.2 NVMe Slots: 4 |
M.2 NVMe PCIe 5.0: 0 |
Sata Ports: 4 |
Bluetooth: Bluetooth 5.3 |
Wifi: Wifi 6E |

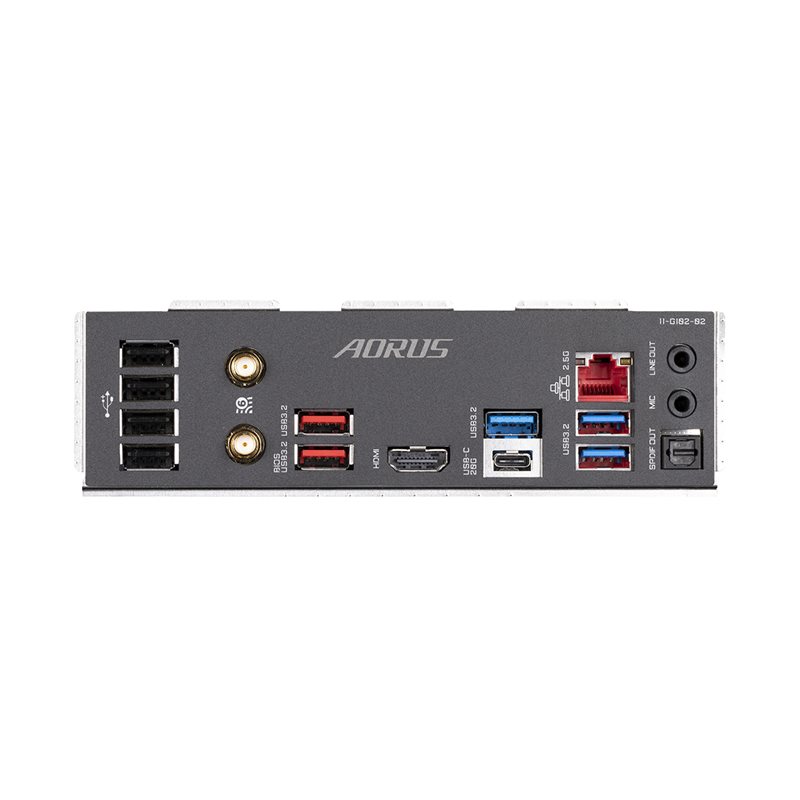

USB Type-C Ports: 1 |
Type-A USB 3.2 Gen2: 2 |
Type-A USB 3.2 Gen1: 3 |
USB Type-A Ports: 9 |
Lan: 2.5 Gb/s |
Bios Flashback Button: No |
Type-C USB 3.2 Gen 2x2 (20Gbps): 1 |
Type-A USB 2.0/1.1: 4 |
USB 3.2 Gen 1 Headers: 2 |
USB 3.2 Gen 2 Headers: 1 |
USB 2.0 Headers: 4 |
Optical S/PDIF: Yes |
Design Ready for PCIe 5.0
PCIe 5.0 Design supports double the bandwidth of PCIe 4.0 and ensures that compatible with cutting-edge GPUs released in the next few years to their full capability.
Twin Digital VRM Design
To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.
4X Large Surface
Increased surface area up to 4X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece design.
Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.
DDR5 Overclocking Up to 7600 and Beyond*
AORUS is offering a tested and proven platform that has memory overclocking capability up to 7600 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
M.2 Thermal Guard III
M.2 Thermal Guard III constructed with 6X optimized heat dissipation surface to prevent throttling and bottleneck that high-speed/ large capacity of M.2 SSDs may cause, especially under heavy workload. The special design of heatsink grooves in the direction of CPU further enhances the in-chassis air flow and optimizes the heat convection efficiency.
SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
2X Faster than ever
- Adoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
- Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet
RGB Fusion Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Connecting the Future - USB 3.2 Gen 2x2 Type-C®
Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data.
CONNECTING THE FUTURE - Front USB3.2 Gen 2 Type-C®
USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
Audiophile Grade Capacitors (Premium Grade Audio)
To ensure a studio-quality experience, WIMA and Premium Grade Audio capacitors are used to provide power to the overall system.
EZ-Latch
With GIGABYTE EZ-Latch, you can DIY your PC in no time, quick and easy.
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
