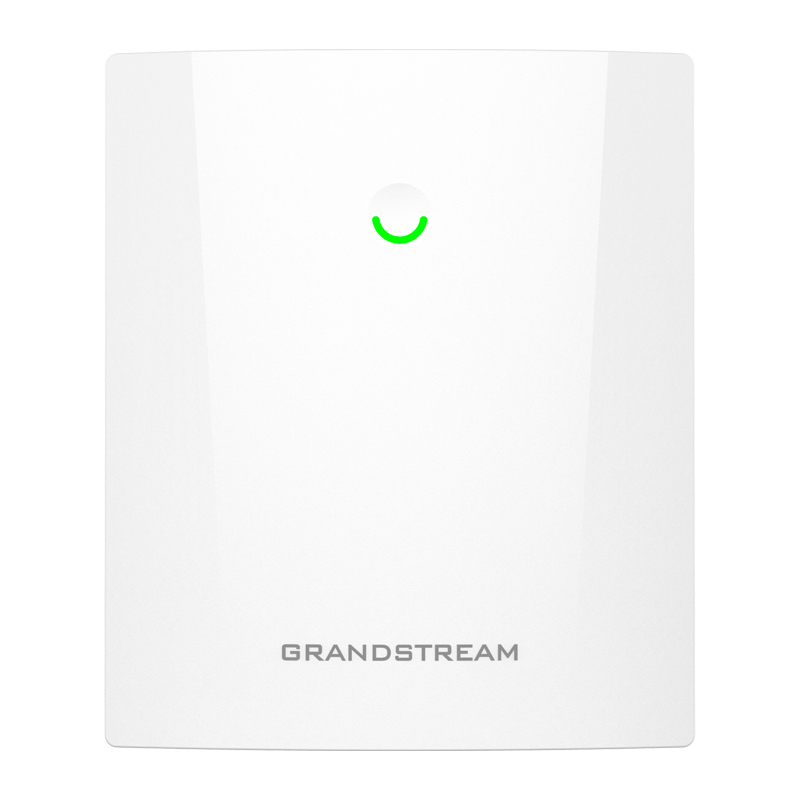

Grandstream GWN7660ELR 2x2 802.11ax Wi-Fi 6 Outdoor Long Range Access Point
Enterprise Access Point Solution
| Brand - AP: Grandstream |
| Operation Modes: Access point |
| Available Bands: 2.4GHz & 5GHz |
| Coverage Range: Up to 300 meters |
| Antennas: 5 Individual internal Antennas |
| Wi-Fi: Wifi 6 |
| PoE In: Yes |
| Manufacturer's Code | GWN7660ELR |
| Wi-Fi Standards | IEEE 802.11 b/g/n/ac/ax |
| Antennas | 5 individual internal antennas; 2.4GHz x 2, gain 5.5 dBi; 5 GHz x 2, gain 6.0 dBi; BT gain 4.5 dBi |
| Frequency Bands | 2.4GHz radio: 2412 - 2484 MHz, 5GHz radio: 5180 - 5825 MHz *Not all frequency bands can be used in all regions |
| Channel Bandwidth | 2.4GHz: 20 and 40 MHz, 5GHz: 20, 40, 80 and 160 MHz |
| System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device |
| MU-MIMO | 2×2:2 2.4GHz, 2×2:2 5GHz |
| Coverage Range | Up to 300 meters *Coverage range can vary based on environment |
| Maximum TX Power | 5GHz: 26dBm, 2.4GHz: 27dBm *Maximum power varies by country, frequency band, and MCS rate |
| Maximum RX Sensitivity | 2.4GHz: -96dBm, 5GHz: -90dBm |
| SSIDs | 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
| Concurrent Clients | 256 |
| Network Interfaces | 1x 1G Port and 1x 2.5G SFP |
| Port Bluetooth | BLE 5.2 |
| Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock |
| Mounting | Wall mount or pole mount, kits included |
| LEDs | 1 tri-color LED for device tracking and status indication; 1 single-color LED for SFP |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller can manage up to 50 local GWN APs, GWN.Cloud offers a free cloud management platform for unlimited GWN APs, GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
| Power and Green Energy Efficiency | PoE 802.3af/ 802.3at; Maximum Power Consumption: 13W (Not Included) |
| Environmental | Operation:-30°Cto 60°C, Storage: -30°C to 70°C, Humidity: 5% to 95% Non-condensing |
| Physical | Unit Dimension: 270mm x 230mm x 57mm, Unit (including brackets): 1kg, Entire Package Dimension: 439mm x 329mm x 137mm, Entire Package Weight: 2.4kg |
| Weatherproof Grade | IP67-level weatherproof capability when installed vertically |
