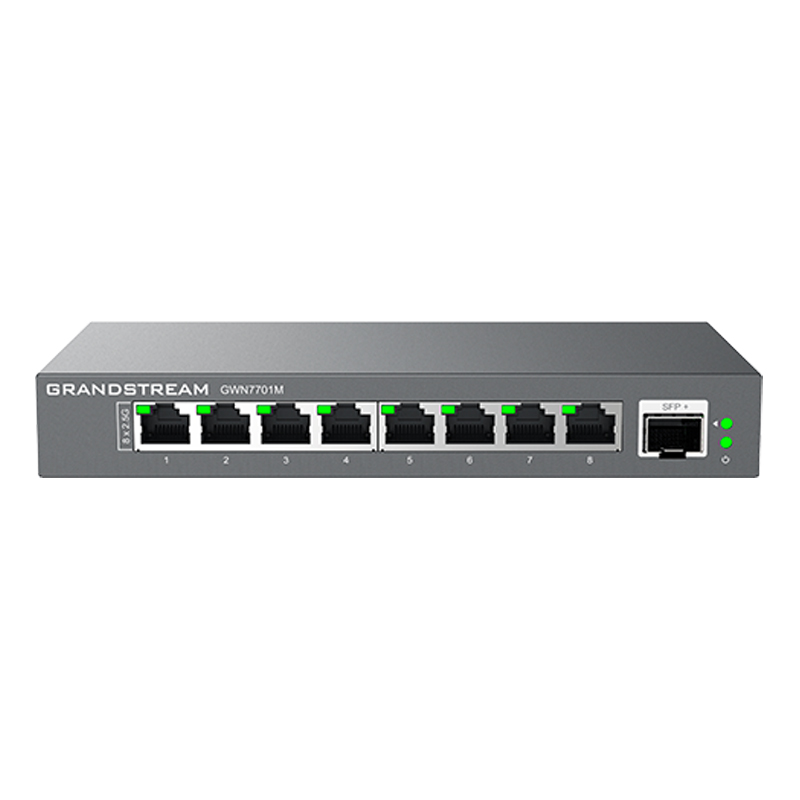

Grandstream GWN7701M 8 Port 2.5 Multi-Gigabit, 1 x SFP+ Unmanaged Ethernet Switch
8 Port 2.5 Multi-Gigabit, 1 x SFP+ Unmanaged Ethernet Switch
| Brand - Networking: Grandstream |
| Switching Capacity: 60Gbps |
| PoE Support: None |
| 2.5G Ethernet Ports: 8 |
| 10G Ethernet Ports: 0 |
| SFP+ Ports: 1 |
| Gigabit Ethernet Ports: 0 |
| Enclousure: Metal | Wall Mountable |
The Grandstream GWN7700M series are unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses. These 6 and 9-port multi-Gigabit switches support fast Ethernet, 1-Gigabit, and 2.5-Gigabit network speeds while including 1 SFP+ Gigabit fiber port that provides 1-Gigabit or 10-Gigabit high-speed uplink connectivity to your network. The GWN7700M and GWN77001M require no configuration or installation, are desktop and wall-mountable, and provide auto MDI/MDIX to eliminate the need for crossover cables. They support auto-negotiation on each port to recognize the speeds of 100/1000/2500Mbps network devices and intelligently adjust for compatibility and optimal performance. The plug-and-play GWN7700M and GWN7701M are the ideal unmanaged network switches for home offices and small-to-medium businesses that require high-speed, multi-Gigabit connectivity.Features
- 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
- One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
- LED Indicators; Per port: Link/Activity/Speed Per device: Power
- Auto MDI/MDIX crossover for all ports
- Whisper Quiet: fanless
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Green technology reduces power consumption
- QoS - Supports Default Strict Priority when present
| Details | |
|---|---|
| Manufacturer's Code | GWN7701M |
| 2.5 Gigabit Ports | 8 |
| Enclosure | Metal |
| Mounting | Desktop/ Wall-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz(2.5GBASE-T), IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3aq |
| Port Features | 8× 100/1000/2500Mbps RJ45 Ports; 1× SFP+ Fiber Port |
| Network Media | 2.5GBase-T / 1000Base-T / 100Base-TX / 10 Base-Te, Half/Full-Duplex |
| LED Indicators | Per port: Link/Activity Green; Per device: Power Green |
| Mac Address Table | 4K |
| Switching Capacity | 60Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, IEEE 802.3az (Energy Efficient Ethernet), 802.1p/DSCP QoS, IGMP |
| Power Adapter | External 12VDC/1A |
| Max Power Consumption by Base System | 9.7W |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F) |
| Dimensions (L x W x H) | Unit: 190 x 100 x 28mm |
