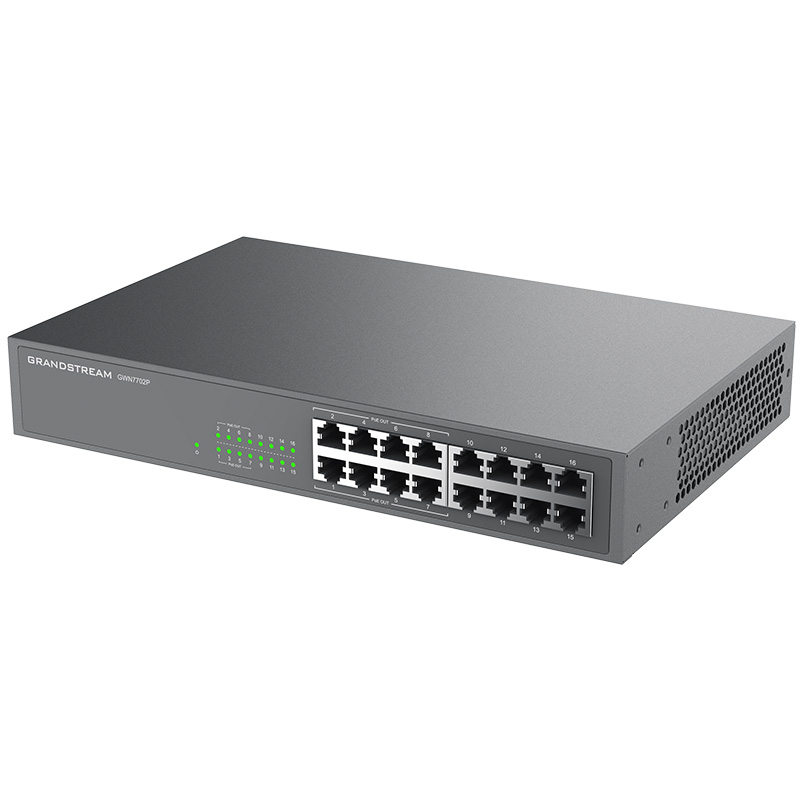

Grandstream GWN7702P 16 Port Gigabit Unmanaged Network Switch with 8 Ports PoE
16 Port Gigabit Unmanaged Network Switch
| Brand - Networking: Grandstream |
| Switching Capacity: 32Gbps |
| PoE Support: Yes |
| 2.5G Ethernet Ports: 0 |
| 10G Ethernet Ports: 0 |
| SFP+ Ports: 0 |
| Gigabit Ethernet Ports: 16 |
| Enclousure: Metal | Rack-Mount |
Grandstream GWN7702P 16 Port Gigabit Unmanaged Network Switch with 8 Ports 802.3af/at PoE
The GWN7700 series are unmanaged network switches that provide a quick
and cost-effective way to add high-speed Gigabit connectivity to home
offices and small/medium businesses. It requires no configuration or
installation, offers a desktop and wall-mountable design, and provides
auto MDI/MDIX to eliminate the need for crossover cables. Each port
supports auto-negotiation to allow the GWN7700 series to recognize the
link speed of any 10/100/1000Mbps network device and intelligently
adjust for compatibility and optimal performance. The PoE
(Power-over-Ethernet) models provide ports with IEEE 802.3af/at
compliant, smart dynamic PoE output to power IP phones, IP cameras,
Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700
series are the ideal unmanaged network switches for home offices and
small-to medium businesses.Features
- 16 Gigabit RJ45 ports with 8 x 30W port PoE+ output
- Green technology reduces power consumption
- Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Supports long cable connection
- QoS - Supports Default Strict Priority when present
| Details | |
|---|---|
| Manufacturer's Code | GWN7702P |
| Gigabit Ports | 16 |
| PoE Ports | 8 |
| Enclosure | Metal |
| Mounting | Desktop/Rack-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Port Feature | 16 × 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| PoE Configuration | 1~8 Ports 802.3 af/at compliant, Up to 30 W on Each Port, Total 138W Power Budget, Overload to cut off the lowest priority port, Priority: Port 1 to Port 8 |
| LED Indicators | Per port: Link/Activity - Green, Per port: PoE output - Yellow, Per device: Power Green |
| Mac Address Table | 8K |
| Switching Capacity | 32Gbps |
| Jumbo Frame | 10KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, Half duplex backpressure |
| Power Adapter | Internal 100-240V AC, 50/60Hz. 150W |
| Max System Power Consumption | 10.1W@220V/50Hz (excluding PoE output power) |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F), Storage Temperature: -20 to 60 °C (-4 to 140 °F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit: 280 x 180 x 44mm; Package: 366 x 211 x 53mm |
| Weight | Unit: 1.58KG, Entire Package: 2.18KG |
| Compliance | FCC, CE, RCM, IC, UKCA |
